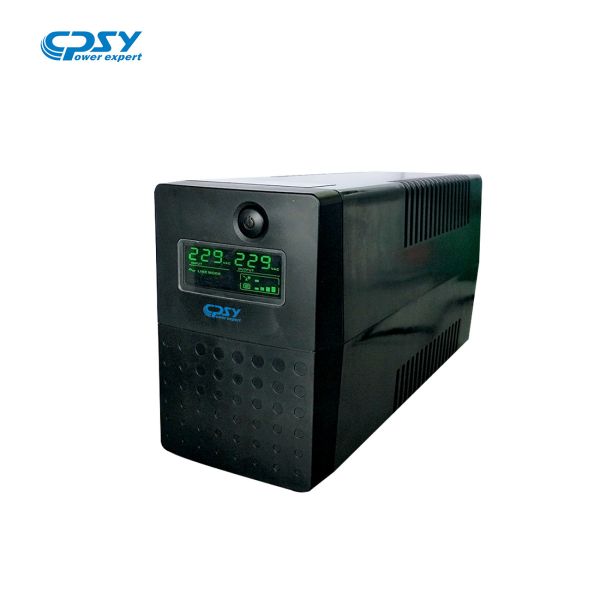

High Frequency Online Ups 1000va/800w Dc 12v With 1*12v-9ah Battery

Brand Name : CPSY

Model Number : S series Line interactive UPS

Certification : ISO9001, CE,ROHS,TLC,OHSAS18001,ISO14001

Place of Origin : Guangdong China

MOQ : 200

Price : usd 30-33 pieces

Payment Terms : T/T

Supply Ability : 3000+pieces+per month

Delivery Time : 30days

Packaging Details : 500-800va(600*350*250mm carton); 1000va (415*196*270mm); 1500va &2000va (442*196*313mm)

Material : Plastic

Waveform : Simulated Sine Wave

Factor : 0.6

Recharge time : 4-6 hours recovery to 90% capacity

Color : black

Battery type : 12V 7ah or 9ah

Contact Now

Shenzhen Shangyu Electronic Technology Co., Ltd
S series Technical date
MODEL S400 S450 S500 S550 S600 S650 S800 S850 S1000-12V S1050-12V S1000 S1500 S2000
LED/LCD LED LCD LED LCD LED LCD LED LCD LED LCD LED LCD LCD
CAPACITY 400VA / 240W 500VA / 300W 600VA / 360W 800VA / 480W 1000VA / 500W 1000VA / 600W 1500VA / 900W 2000VA / 1200W
INPUT
Voltage 220/230/240 VAC
Voltage Range 162-290 VAC
Frequency Range 60/50 Hz (auto sensing)
OUTPUT
AC Voltage Regulation
(Batt. Mode)		 220VAC±10%
Frequency Range
(Batt. Mode)		 60 Hz or 50 Hz ±1 Hz
Transfer Time Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode) Simulated Sine Wave
BATTERY
Battery Type & Number 12 V/7Ah x 1 12 V/9 Ah x 1 12 V/7 Ah x 2 12 V/9 Ah x 2 12 V/9 Ah x 2
Typical Recharge Time 4-6 hours recover to 90% capacity
PROTECTION
Full Protection Overload, discharge, Short circut, and overcharge protection
INDICATORS
LCD Display AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Low Battery
LED Display AC Mode Green lighting The right green LED lighting & the 2nd to 5th
green LEDs gradually lighting indicating load level
Battery Mode Yellow flashing The right green LED flashing & the 2nd to 5th
green gradually lighting indicating battery capacity
Fault N/A Red lighting
ALARM
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Battery Replacement Alarm Sounding every 2 seconds
Fault Continuously sounding
PHYSICAL
Dimension, D x W x H (mm) 284X100X140 350 x 146 x 160 397 x 146 x 205
Net Weight (kgs) 4.2 4.5 4.9 5.1 8 11.1 11.5
ENVIRONMENT
Humidity 0-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 40dB
MANAGEMENT
Optional USB/RS-232 Port Supports Windows22000/2003/XP/Vista/2008,Windows27,Linux,Unix,andMAC
